This multi-generational home is located in a pine forest, in a rural area of Saint-Petersburg. Designed to accommodate multiple generations of the client’s extended family, the house consists of four interconnected residences.
House offers various amenities, including a spa area, screening room, wine cellar, and a basement garage with a small workshop. The exterior design concept is based on interconnection of different volumes, clad in neutral-colored materials: aluminum composite panels, horizontal siding, and white plaster. The house spans 1200 m2 across five levels, connected with a lift.

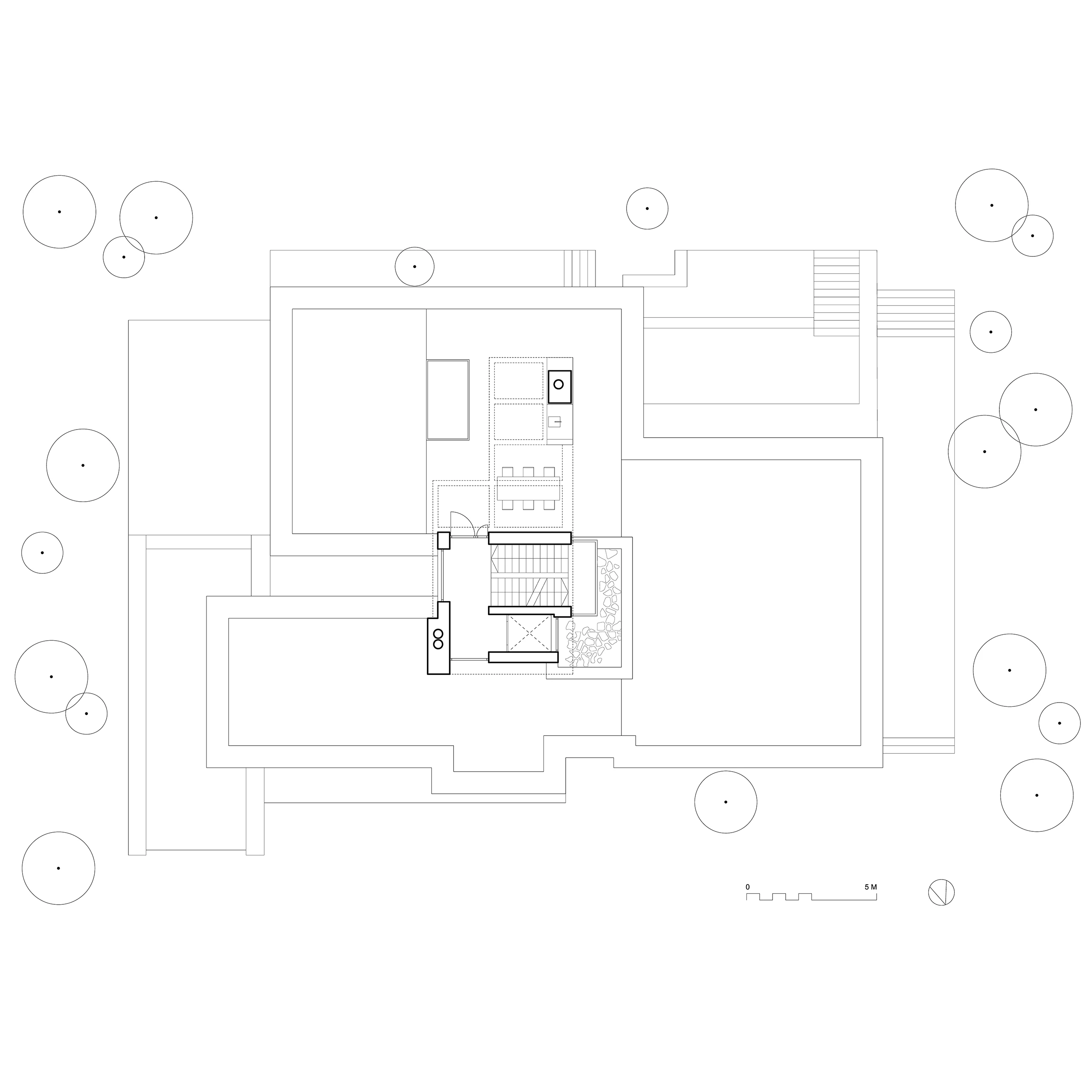

The ground floor accommodates public areas, upper floor is entirely private, while the sublevel houses all the amenities. A central enclosed patio brings nature and elements to the heart of the house.

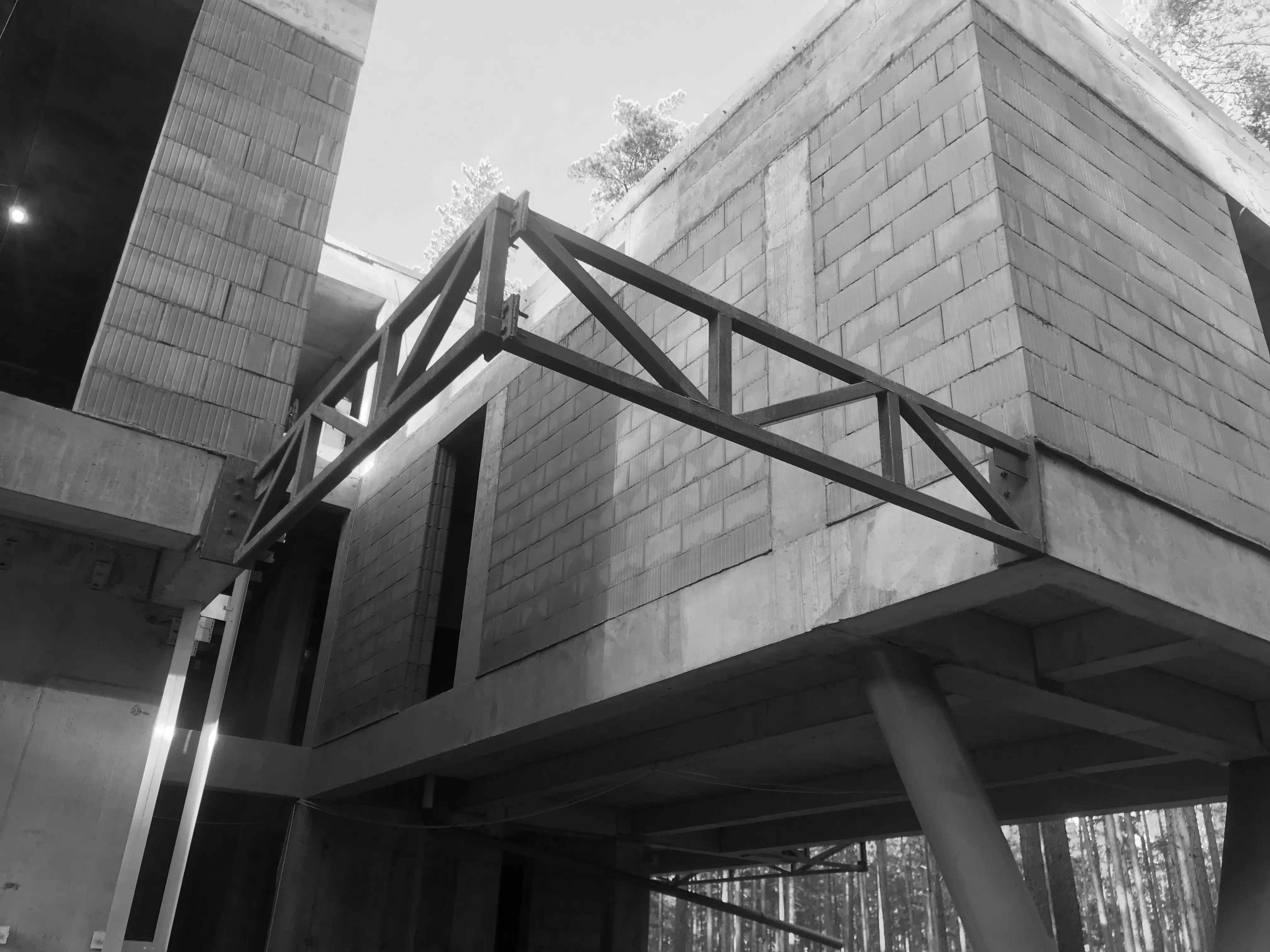

The house features floor-to-ceiling energy-efficient windows in all rooms, to create a strong connection with the surrounding forest. The ground floor is wrapped with decks, providing opportunities for outdoor activities for all the residencies. Another entertainment area with an outdoor kitchen is at the rooftop. A V-shaped support bears one of the residencies with a carport underneath, offering covered parking. All outdoor floors are heated to prevent ice accumulation during temperature fluctuations.
The spa area features two pools, including a 25-meter pool for sport activities, as well as a sauna with panoramic window, hammam and a lounge area with a fireplace. A sunken outdoor terrace offers an additional outdoor space.
1 walls: aluminum composite panels, air gap, insulation 120mm, thermic blocks 250mm, interior finish
2 roof: composite decking on adjustable supports, PVC membrane, substrate, PIR insulation 150mm, substrate, concrete slab 180mm, interior ceiling lining
3 floor: interior floor finish, screed with underfloor heating, heat reflecting layer, 50mm insulation, 180mm concrete slab
4 deck: composite decking on adjustable supports, PVC membrane, screed with underfloor heating, heat reflecting layer, 50mm insulation, 90mm concrete slab on corrugated metal, piles
5 high-security roller shutters
6 basement walls: drainage membrane, XPS insulation 100mm, dampproofing, 300mm concrete walls
7 basement floor: polished concrete floors, XPS insulation 50mm, 350mm concrete slab, dampproofing, light concrete base
072 Multi-generational house
Komarovo, Saint-Petersburg, Russia
Built
2018-2020
2020-2023
1200m2
Schematic Design
Construction Drawings
Construction Administration
Pivate residence
Daniil Vyazemskiy
Azaliia Miftakhova
Damir Buturovich
HVAC: Sergey Roslyakov
Structural: Alexey Polushkin
Electrical & Smart House: Company
Glass construction: Dude Surname
